How-to: Clean up recorded HTTP mappings in Traffic Parrot

In this tutorial, you will clean up recorded HTTP mappings in Traffic Parrot and turn a messy recording into a small, maintainable set of stubs. When you record a real REST API — or import a HAR file — you usually end up with dozens of near-identical per-id stubs: one for /users/1, another for /users/2, another for /orders/1001, and so on. Each stub carries noisy response headers and over-strict request matchers, so the recording is hard to read and painful to maintain. You will open Traffic Parrot's non-destructive cleanup page, run the standard cleanup, and collapse those per-id stubs into convention-following pattern mappings such as /users/[0-9]+ and /orders/[0-9]+. By the end you will have a brand-new cleaned scenario that serves the same requests with a fraction of the mappings, while the original recording stays exactly as it was.

To follow along, you should first:

• Be comfortable recording HTTP traffic with Traffic Parrot. If you have not recorded a scenario before, work through Chapter 2: How to record and replay HTTP and SOAP requests and responses first — cleanup is the natural step after recording.
• Have Traffic Parrot downloaded and extracted, and know how to start and stop it.
• Understand why a REST resource path such as /users/{id} is best matched with a regular-expression pattern rather than one literal stub per id. The MDN guide to regular expressions is a good primer if you need one.

Recording is the fastest way to build an API mock, but it captures traffic exactly as it happened. Imagine a generic REST API with two resources, /users/{id} and /orders/{id}. While recording, your application happens to fetch users 1 through 20 and a handful of orders. Traffic Parrot dutifully records one stub for every distinct request, naming each mapping file <method>-<url>-<uuid>.json:

GET /users/1     -> 200  (get-users1-8ee16f88-38fe-45a5-b8b8-6e33fe11bf9a.json)
GET /users/2     -> 200  (get-users2-3d2f0a17-9c4b-4e88-bf1a-0b7e6d2c5a41.json)
GET /users/3     -> 200  (get-users3-c71a4e90-2f6d-4b3a-8e57-1d9f8a04c662.json)
...
GET /orders/1001 -> 200  (get-orders1001-5a9c3b21-7e84-4f0d-9a16-2c8b5e7f1d03.json)
GET /orders/1002 -> 200  (get-orders1002-b4f8e602-1a73-4c95-8d20-6f3e9b1a7c58.json)

Each of those stubs also matches on the exact request body it saw and replays every response header the real server returned — Date, Server, Connection, and so on. The result is a scenario with dozens of stubs that all do essentially the same thing. When a teammate opens it, they cannot tell at a glance what the API does, and a single change (say, adjusting the user response shape) means editing twenty stubs by hand.

What you actually want is one stub per resource: a single mapping matching /users/[0-9]+ and a single mapping matching /orders/[0-9]+. That is exactly what cleanup produces.

Before you run anything, two facts make cleanup safe to try:

• It is non-destructive. Cleanup never modifies your source scenario. It writes the cleaned mappings to a new scenario whose name you supply; the original recording is left completely untouched. If you do not like the result, you simply switch back.
• It is convention-only today. The standard cleanup applies a fixed set of conventions defined by CleanupConfiguration.defaultConfig(). There are no tunable parameters or rule toggles to configure — the only input is the name of the target scenario. This keeps the workflow predictable: the same recording always produces the same cleaned result.

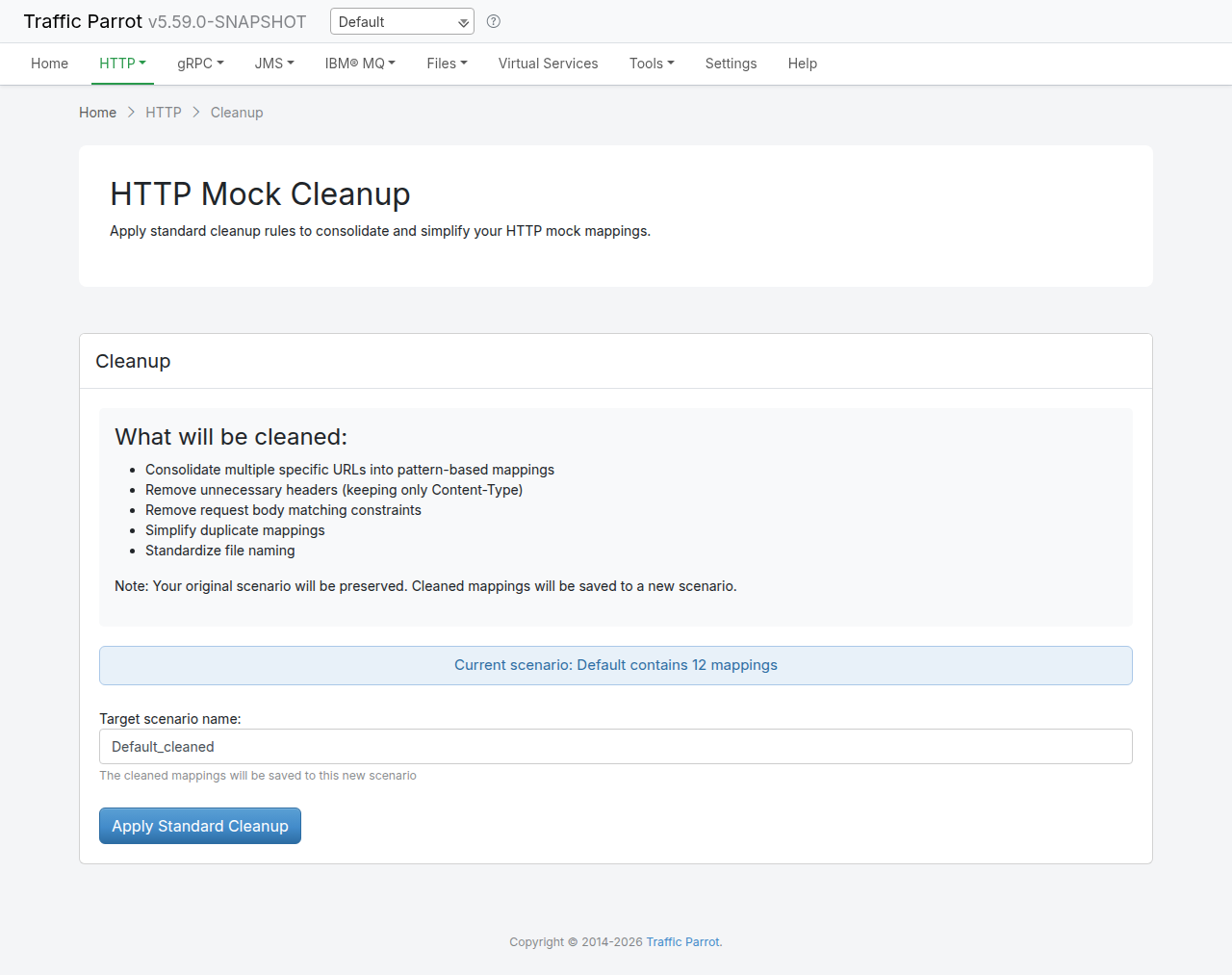

With your noisy recording loaded as the current scenario, open a web browser and navigate to http://localhost:8080. From the HTTP menu in the top navigation bar, choose Cleanup (the page also lives at /http/cleanup.html).

The page shows the current scenario, how many mappings it contains, and a short summary of what the standard cleanup will do. The Target scenario name field is pre-filled with a suggestion — the current scenario name with _cleaned appended — which you can change to anything you like.

Before the results panel appears, the page lists what the standard cleanup will clean. The live page surfaces a five-item summary:

1. Consolidate specific URLs (such as /users/1, /users/2, /users/3) into a single pattern stub matching /users/[0-9]+.
2. Remove noisy response headers, keeping only Content-Type and id-style headers.
3. Remove over-strict request body-matching constraints so a stub matches regardless of the request body.
4. Consolidate duplicate mappings down to a single stub.
5. Standardize mapping and response body file names.

These five bullets are what the GUI shows. Standard cleanup actually applies two further response-body transforms behind the scenes — making absolute response URLs portable and inserting dynamic response templates. For the full field-by-field breakdown, see the Mapping cleanup section of the Traffic Parrot HTTP documentation.

Confirm (or edit) the target scenario name and click Apply Standard Cleanup. Traffic Parrot reads every mapping in the current scenario, applies the conventions, and writes the cleaned mappings into the new scenario. Your original recording is not touched.

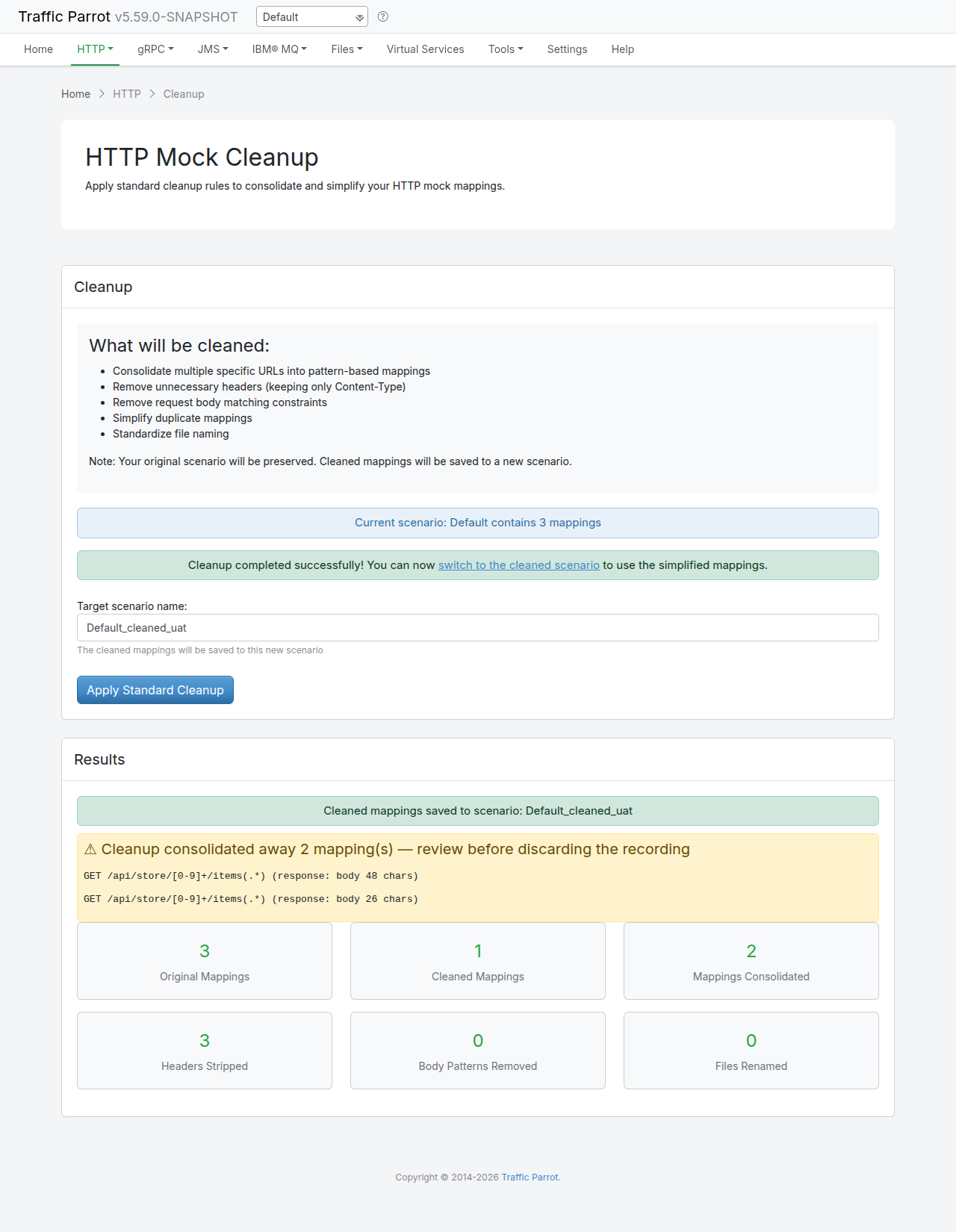

The Results panel then summarises what happened. The GUI shows six counters:

• Original Mappings — how many mappings the source scenario had.
• Cleaned Mappings — how many remain after consolidation.
• Mappings Consolidated — stubs merged into patterns or deduplicated.
• Headers Stripped — mappings whose response headers were trimmed.
• Body Patterns Removed — request body matchers that were dropped.
• Files Renamed — response body files renamed to the standard convention.

When cleanup merges near-duplicate mappings (same method and URL pattern, keeping only the smallest-body response), a warning panel lists exactly which mappings were consolidated away. Review that list before you discard the original recording, in case a consolidated-away mapping carried a response you still need. The original scenario is still on disk, so nothing is lost — the warning just tells you where to look.

To make the numbers concrete, suppose your recording of the generic /users/{id} and /orders/{id} API contained 42 mappings. Running standard cleanup on it produces a cleaned scenario with 18 mappings — and the results panel reports how it got there:

Counter	Value	What it means
Original Mappings	42	The per-id stubs the recording captured.
Cleaned Mappings	18	The consolidated, convention-following stubs.
Mappings Consolidated	20	Per-id stubs merged into /users/[0-9]+ and /orders/[0-9]+ patterns (and duplicates removed).
Headers Stripped	15	Mappings whose noisy response headers were trimmed.
Body Patterns Removed	8	Over-strict request body matchers dropped.
Files Renamed	5	Response body files renamed to the standard convention.

Behind the GUI's six counters, the cleanup result also records that 12 response URLs were replaced with the portable {{request.baseUrl}} template. That counter (and the dynamic-template counter) is part of the result JSON rather than the GUI panel; the HTTP cleanup documentation lists every field the REST API returns.

The headline is the first two rows: 42 → 18. Twenty-four near-identical stubs collapsed into a handful of patterns that any teammate can read at a glance.

The counters tell you how much shrank, but it helps to see the actual JSON before and after. Suppose the recording captured these two per-id stubs — one for /users/1 and one for /users/2. Each uses the literal "url" field, replays every header the real server returned, and matches on the exact request body it saw:

// get-users1-8ee16f88-38fe-45a5-b8b8-6e33fe11bf9a.json
{
  "request": {
    "url": "/users/1",
    "method": "GET",
    "bodyPatterns": [ { "equalToJson": "{\"include\":\"profile\"}" } ]
  },
  "response": {
    "status": 200,
    "bodyFileName": "get-users1-8ee16f88-response.json",
    "headers": {
      "Content-Type": "application/json",
      "Date": "Tue, 09 Jun 2026 10:14:52 GMT",
      "Server": "nginx/1.25.3"
    }
  }
}

// get-users2-3d2f0a17-9c4b-4e88-bf1a-0b7e6d2c5a41.json
{
  "request": {
    "url": "/users/2",
    "method": "GET",
    "bodyPatterns": [ { "equalToJson": "{\"include\":\"profile\"}" } ]
  },
  "response": {
    "status": 200,
    "bodyFileName": "get-users2-3d2f0a17-response.json",
    "headers": {
      "Content-Type": "application/json",
      "Date": "Tue, 09 Jun 2026 10:14:53 GMT",
      "Server": "nginx/1.25.3"
    }
  }
}

Standard cleanup collapses both of these (and every other /users/<id> stub) into a single pattern mapping:

// one consolidated mapping, named after the /users/[0-9]+ pattern
{
  "request": {
    "urlPattern": "/users/[0-9]+(.*)",
    "method": "GET"
  },
  "response": {
    "status": 200,
    "bodyFileName": "users_response.json",
    "headers": {
      "Content-Type": "application/json"
    }
  }
}

Four transforms are visible in that one diff:

• url becomes urlPattern. The two literal per-id paths /users/1 and /users/2 are replaced by one regular-expression match, /users/[0-9]+(.*). The numeric id segment becomes [0-9]+, and a trailing (.*) is appended so the stub still matches when the caller adds query parameters.
• Noisy response headers are stripped. The recorded Date and Server headers (which change on every request and have no bearing on the mock) are removed, leaving just Content-Type.
• The over-strict request-body matcher is dropped. The recorded bodyPatterns constraint is removed, so the consolidated stub matches the request regardless of its body.
• The body file is renamed to the standard convention. The per-id response files are consolidated and renamed to <base>_response.<ext> — here users_response.json.

These are the same transforms catalogued in the “What cleanup does” table of the Traffic Parrot HTTP documentation. The JSON above is illustrative; your own ids, headers, and body matchers will differ.

In the results panel, click switch to the cleaned scenario to make the cleaned mappings active. Traffic Parrot now serves stubs from the new scenario you named.

Verify that the consolidated stubs still serve the same requests. Send a couple of requests that hit different ids — the single /users/[0-9]+ stub answers all of them, just as the twenty individual stubs did before:

$ curl http://localhost:8081/users/7
$ curl http://localhost:8081/users/19
$ curl http://localhost:8081/orders/1001

Each request matches the relevant pattern stub and returns a response. Because cleanup also makes response URLs portable and (where applicable) echoes the requested id back through a template, the responses stay consistent with what the per-id stubs returned. You can switch back to the original scenario at any time — it is still there, exactly as you recorded it.

• Symptom: a request that worked before now returns a 404. Check the consolidated-away warning list in the results panel. If a mapping you still need was merged away because it shared a method and URL pattern with another stub, copy that response out of the original (untouched) scenario and add it back, or keep using the original scenario for that endpoint.
• Symptom: the cleaned scenario already exists. The target scenario name must be free. Pick a different name in the Target scenario name field, or remove the existing scenario first.
• Symptom: nothing was consolidated. If your recording already used distinct paths with no numeric or id-style segments, there may be little to collapse. Cleanup still strips noisy headers and over-strict body matchers, which the counters will show.
