Request Matching

When Traffic Parrot receives a request via any protocol or technology like HTTP, JMS, gRPC and others, it will try to simulate the system it is replacing by sending back a response to the client that sent the request.

To decide which response to send, it will go through all the request to response mappings it has available to find the response to be returned.

Traffic Parrot support matching attributes of requests using the following matchers.

For the complete cross-protocol list of every matcher and its mapping JSON options, including matchers that are not shown in the editor dropdowns, see the matchers reference further down this page.

Here is a collection of matcher examples that cover typical request matching use cases.

Matches JSONPath

{
  "field" : null
}

$[?(@.field)]

{
  "other" : "any"
}

$[?(!(@.field))]

{
  "name" : "John"
}

$[?(@.name =~ /^J[a-z]+$/)]

{
  "name" : "Other"
}

$[?(!(@.name =~ /^J[a-z]+$/))]

{
  "name" : "John"
}

$[?(@.name == 'John')]

{
  "name" : "John",
  "lastName" : "Smith"
}

$[?(@.name == 'John' && @.lastName == 'Smith')]

{
  "name" : "Bob"
}

{
  "name" : "John"
}

$[?(@.name == 'John' || @.name == 'Bob')]

{
  "root" : {
    "items" : [
      {
        "id": "1111"
      }
    ]
  }
}

$.root[?('1' in @.items[*].id)]

{
  "root" : {
    "items" : [
      {
        "id": "1"
      },
      {
        "id": "2"
      }
    ]
  }
}

$.root[?('1' in @.items[*].id && '2' in @.items[*].id)]

{
  "id": 1,
  "items": [
    {
      "id": 2,
    }
  ]
}

$[?(@.id == 1 && 2 in @.items[*].id)]

A request to response mapping uses one or more matchers to decide whether an incoming request matches. This section is the complete reference of every matcher Traffic Parrot understands in mapping JSON, together with a copy-ready example for each.

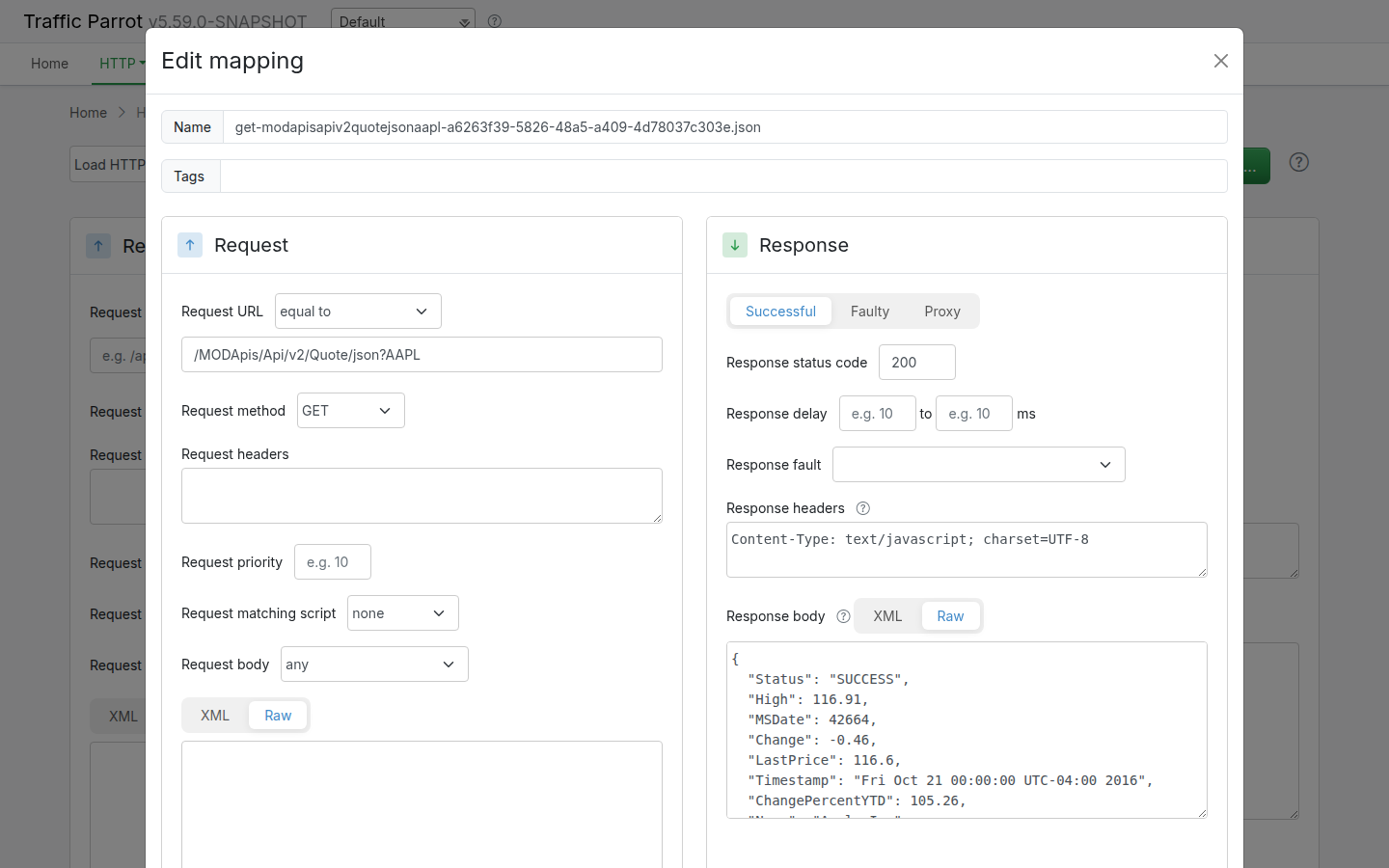

The mapping editor in the web user interface offers a subset of the available matchers through its dropdown menus — the most common ones for each protocol. Additional matchers, inherited from the bundled request-matching engine, are not shown in those dropdowns but can still be used by editing the mapping JSON directly (on disk in the mappings folder, or through the import and API surfaces). Those are listed in the JSON-only matchers section and are each labelled JSON-only.

Matchers marked Traffic Parrot extension are added by Traffic Parrot on top of the bundled engine. The remaining matchers are inherited from the bundled request-matching engine.

Where each matcher applies. Not every matcher makes sense on every protocol, so each entry below has an Applies to note. In the examples, body matchers appear inside a bodyPatterns array on the request and URL matchers appear as top-level request fields, which is how they are stored in the mapping JSON.

Editor-offered matchers

These matchers are available from the dropdown menus in the mapping editor. The Applies to column shows which editor surfaces offer each one. A matcher may still be usable in mapping JSON for a protocol where the editor does not list it, but the column reflects what the editor exposes.

HTTP requests also support five URL matchers, chosen from the Request URL dropdown. These are top-level request fields rather than body patterns.

Body matcher examples

Each body matcher is one entry in the bodyPatterns array. The HTTP examples below show the matcher in a minimal mapping; the same body-pattern entry is used in the JMS, Native IBM MQ and gRPC mappings (within their respective request shapes).

equalTo

{
  "request": {
    "method": "POST",
    "url": "/orders",
    "bodyPatterns": [
      { "equalTo": "expected request body" }
    ]
  },
  "response": { "status": 200 }
}

contains

{
  "request": {
    "bodyPatterns": [
      { "contains": "ORDER-" }
    ]
  },
  "response": { "status": 200 }
}

doesNotContain

{
  "request": {
    "bodyPatterns": [
      { "doesNotContain": "DRAFT" }
    ]
  },
  "response": { "status": 200 }
}

matches

{
  "request": {
    "bodyPatterns": [
      { "matches": "ORDER-[0-9]{6}" }
    ]
  },
  "response": { "status": 200 }
}

doesNotMatch

{
  "request": {
    "bodyPatterns": [
      { "doesNotMatch": ".*TEST.*" }
    ]
  },
  "response": { "status": 200 }
}

equalToJson

{
  "request": {
    "bodyPatterns": [
      { "equalToJson": "{ \"id\": 1, \"name\": \"Widget\" }" }
    ]
  },
  "response": { "status": 200 }
}

matchesJson Traffic Parrot extension

The expected value is supplied as inline JSON, so it does not need to be escaped into a string.

{
  "request": {
    "bodyPatterns": [
      { "matchesJson": { "id": 1, "name": "Widget" } }
    ]
  },
  "response": { "status": 200 }
}

matchesGraphQL Traffic Parrot extension

Matches a GraphQL request body (a JSON document with a query field) by comparing the canonical form of the incoming query against the expected query, so two queries that differ only in insignificant whitespace, field order or argument order are treated as equal. GraphQL requests are typically sent as an HTTP POST body.

{
  "request": {
    "method": "POST",
    "url": "/graphql",
    "bodyPatterns": [
      { "matchesGraphQL": "query { user(id: 1) { name email } }" }
    ]
  },
  "response": { "status": 200 }
}

matchesJsonPath

{
  "request": {
    "bodyPatterns": [
      { "matchesJsonPath": "$.customer.id" }
    ]
  },
  "response": { "status": 200 }
}

equalToXml

{
  "request": {
    "bodyPatterns": [
      { "equalToXml": "<order><id>1</id></order>" }
    ]
  },
  "response": { "status": 200 }
}

matchesXml Traffic Parrot extension

{
  "request": {
    "bodyPatterns": [
      { "matchesXml": "<order><id>1</id></order>" }
    ]
  },
  "response": { "status": 200 }
}

matchesXPath

{
  "request": {
    "bodyPatterns": [
      { "matchesXPath": "//order/id/text()" }
    ]
  },
  "response": { "status": 200 }
}

matchesSwiftField Traffic Parrot extension

Available on the JMS and Native IBM MQ message body. The field is the SWIFT field tag; matches is a regular expression applied to that field's value.

{
  "request": {
    "bodyPatterns": [
      { "matchesSwiftField": { "field": "20", "matches": "TXNREF.*" } }
    ]
  },
  "response": { "status": 200 }
}

matchesFixField Traffic Parrot extension

Available on the JMS and Native IBM MQ message body. The field is the FIX tag number; matches is a regular expression applied to that tag's value.

{
  "request": {
    "bodyPatterns": [
      { "matchesFixField": { "field": "35", "matches": "D" } }
    ]
  },
  "response": { "status": 200 }
}

binaryEqualTo

Offered by the JMS editor for binary (bytes) message bodies. The expected value is Base64-encoded.

{
  "request": {
    "bodyPatterns": [
      { "binaryEqualTo": "AQIDBA==" }
    ]
  },
  "response": { "status": 200 }
}

matchesJsonSchema

The body is JSON that validates against the given JSON Schema. Enter the schema in the editor's request body field; for the optional schemaVersion sibling, see the JSON-only matchers section.

{
  "request": {
    "bodyPatterns": [
      { "matchesJsonSchema": "{ \"type\": \"object\", \"required\": [\"id\"] }" }
    ]
  },
  "response": { "status": 200 }
}

absent

{
  "request": {
    "url": "/health",
    "bodyPatterns": [
      { "absent": true }
    ]
  },
  "response": { "status": 200 }
}

URL matcher examples

urlEqualTo

{
  "request": {
    "method": "GET",
    "urlEqualTo": "/orders?status=open"
  },
  "response": { "status": 200 }
}

urlMatching

{
  "request": {
    "method": "GET",
    "urlMatching": "/orders\\?status=(open|closed)"
  },
  "response": { "status": 200 }
}

urlPathEqualTo

{
  "request": {
    "method": "GET",
    "urlPathEqualTo": "/orders"
  },
  "response": { "status": 200 }
}

urlPathMatching

{
  "request": {
    "method": "GET",
    "urlPathMatching": "/orders/[0-9]+"
  },
  "response": { "status": 200 }
}

urlPathTemplate

Selected as path template in the Request URL dropdown. The URL path (ignoring the query string) is matched against a path template with named variables; a request path matches when it fits the template's shape regardless of the concrete variable values. For example /orders/{orderId} matches /orders/123 and /orders/abc.

{
  "request": {
    "method": "GET",
    "urlPathTemplate": "/orders/{orderId}"
  },
  "response": { "status": 200 }
}

A path-template match also exposes its named variables to response templating: a request matched by /orders/{orderId} makes {{request.path.orderId}} available in the templated response, so a mapping can echo a matched path variable straight back into its response. Positional segments stay available as {{request.path.[0]}} however the URL was matched; the named variables are populated only when the request matched via a path template.

The matcher options below are inherited from the bundled request-matching engine (and, where noted, are Traffic Parrot extensions). Each is labelled JSON-only because it cannot be fully expressed through the editor dropdowns — use it by editing the mapping JSON directly, in the mapping file on disk, through import, or through the API. These are advanced flag variants or advanced forms of a matcher whose base form the editor does offer: the same matcher key plus extra sibling fields, or an object form, that the editor does not expose. Where the base matcher is editor-offered, that is noted on the entry.

Matchers that are simply offered in the editor dropdowns — including matchesGraphQL and the path template URL matcher (urlPathTemplate) — are documented in the matchers reference above, not here.

equalTo with caseInsensitive JSON-only

Case-insensitive exact match. Add the sibling flag caseInsensitive next to equalTo.

{
  "request": {
    "bodyPatterns": [
      { "equalTo": "expected body", "caseInsensitive": true }
    ]
  },
  "response": { "status": 200 }
}

equalToJson flags JSON-only

ignoreArrayOrder treats two JSON arrays with the same elements in a different order as equal. ignoreExtraElements ignores additional fields in the actual body that are not present in the expected value. Both default to false and are added as siblings of equalToJson.

{
  "request": {
    "bodyPatterns": [
      {
        "equalToJson": "{ \"items\": [\"a\", \"b\"] }",
        "ignoreArrayOrder": true,
        "ignoreExtraElements": true
      }
    ]
  },
  "response": { "status": 200 }
}

matchesJsonSchema — schemaVersion flag JSON-only

Validates the request body against a JSON Schema. The base matcher is offered in the editor's request body dropdown (enter the schema as the value). The optional schemaVersion sibling shown below is JSON-only — it selects the schema dialect; valid values are V4, V6, V7, V201909 and V202012. When omitted, the default is V202012.

{
  "request": {
    "bodyPatterns": [
      {
        "matchesJsonSchema": "{ \"type\": \"object\", \"required\": [\"id\"], \"properties\": { \"id\": { \"type\": \"integer\" } } }",
        "schemaVersion": "V7"
      }
    ]
  },
  "response": { "status": 200 }
}

equalToXml advanced flags JSON-only

equalToXml accepts several optional sibling flags that the editor does not expose:

• enablePlaceholders — allow placeholder tokens in the expected XML to match arbitrary values.
• placeholderOpeningDelimiterRegex / placeholderClosingDelimiterRegex — customise the placeholder delimiters (default ${ and }).
• exemptedComparisons — an array of XML comparison types to skip (for example NAMESPACE_URI, SCHEMA_LOCATION).
• ignoreOrderOfSameNode — treat repeated sibling elements with the same name as order-independent.
• namespaceAwareness — how strictly XML namespaces are compared; valid values are STRICT, LEGACY and NONE.

{
  "request": {
    "bodyPatterns": [
      {
        "equalToXml": "<order><id>${anything}</id></order>",
        "enablePlaceholders": true,
        "placeholderOpeningDelimiterRegex": "\\$\\{",
        "placeholderClosingDelimiterRegex": "\\}",
        "exemptedComparisons": ["NAMESPACE_URI", "SCHEMA_LOCATION"],
        "ignoreOrderOfSameNode": true,
        "namespaceAwareness": "LEGACY"
      }
    ]
  },
  "response": { "status": 200 }
}

matchesJsonPath advanced form JSON-only

The advanced form takes an object with an expression plus an inner value sub-matcher, so you can assert the value selected by the JSONPath rather than only its presence. The inner sub-matcher can be any string-value matcher (equalTo, contains, matches, and so on).

{
  "request": {
    "bodyPatterns": [
      {
        "matchesJsonPath": {
          "expression": "$.customer.id",
          "equalTo": "12345"
        }
      }
    ]
  },
  "response": { "status": 200 }
}

matchesXPath advanced form JSON-only

The advanced form takes an expression plus an inner value sub-matcher, and optionally an xPathNamespaces map to bind namespace prefixes used in the expression.

{
  "request": {
    "bodyPatterns": [
      {
        "matchesXPath": {
          "expression": "//s:order/s:id/text()",
          "contains": "1"
        },
        "xPathNamespaces": {
          "s": "http://example.com/shop"
        }
      }
    ]
  },
  "response": { "status": 200 }
}

Date and time: before, after, equalToDateTime JSON-only

Compare a date/time in the request against an expected moment. before matches values earlier than the expected, after matches later values, and equalToDateTime matches the same moment. The expected value may be a literal timestamp or an offset expression such as now +3 days. Optional sibling flags:

• actualFormat — the date/time format of the value in the request (when it is not ISO-8601).
• truncateExpected / truncateActual — truncate before comparing; valid units are YEARS, MONTHS, DAYS, HOURS, MINUTES, SECONDS (and the broader truncation forms such as FIRST_DAY_OF_MONTH).
• applyTruncationLast — apply truncation after the offset rather than before.
• expectedOffset / expectedOffsetUnit — shift the expected moment by a number of units (SECONDS, MINUTES, HOURS, DAYS, MONTHS, YEARS).

{
  "request": {
    "bodyPatterns": [
      {
        "before": "now +1 days",
        "actualFormat": "yyyy-MM-dd'T'HH:mm:ss",
        "truncateExpected": "DAYS",
        "expectedOffset": 1,
        "expectedOffsetUnit": "DAYS"
      }
    ]
  },
  "response": { "status": 200 }
}

Logical operators: and, or, not

Compose sub-matchers. and and or take an array of sub-matchers; the body matches when all (and) or any (or) of them match. not takes a single sub-matcher and matches when that sub-matcher does not.

All three operators are offered in the HTTP request body matcher dropdown in the mapping editor — choose and, or or not and supply each sub-matcher inline — or you can write them directly in the mapping JSON, which is also how you apply them on protocols whose editor does not list them.

{
  "request": {
    "bodyPatterns": [
      {
        "and": [
          { "contains": "ORDER-" },
          { "doesNotContain": "DRAFT" }
        ]
      }
    ]
  },
  "response": { "status": 200 }
}

{
  "request": {
    "bodyPatterns": [
      {
        "or": [
          { "equalTo": "PING" },
          { "equalTo": "HEALTHCHECK" }
        ]
      }
    ]
  },
  "response": { "status": 200 }
}

{
  "request": {
    "bodyPatterns": [
      {
        "not": { "contains": "TEST" }
      }
    ]
  },
  "response": { "status": 200 }
}

matchesPathTemplate as a string-value matcher JSON-only

The path-template matcher's everyday use — matching the request URL path against a template — is offered in the editor's Request URL dropdown as path template and is stored as the urlPathTemplate URL matcher (documented above). Use that for URL matching.

This JSON-only entry is the advanced string-value form of the same matcher: the matchesPathTemplate key matches an arbitrary string value against a path template with named variables, such as /users/{id}, and is used wherever a string-value sub-matcher is accepted — for example as the value sub-matcher of a matchesJsonPath or matchesXPath expression that selects a path string from the body. This sub-matcher form is not offered in the editor dropdowns.

{
  "request": {
    "bodyPatterns": [
      {
        "matchesJsonPath": {
          "expression": "$.resourcePath",
          "matchesPathTemplate": "/users/{id}"
        }
      }
    ]
  },
  "response": { "status": 200 }
}

This reference is maintained by hand. It lists every matcher Traffic Parrot accepts in mapping JSON for the version of the documentation you are reading; the set of matchers can change between releases, so always read the page that matches your installed version.

For the matchers offered by each protocol's editor, see the per-protocol pages linked from Available request matchers above.

Traffic Parrot stores request to response mappings on the filesystem.

You can change the root directory by changing the value of the trafficparrot.virtualservice.trafficFilesRootUrl property.

XPath (XML Path Language) is a query language for finding and selecting elements in an XML document. Traffic Parrot allows to match requests using XPath.

We recommend the following reading to users who would like to take their XPaths skills to an advanced level:
